VM-41RH American Standard Overpanel and Sidelight Patch with Fin RH
You are here: Home » Products » GLASS DOORS » PATCH FITTINGS » American Standard Series » VM-41RH American Standard Overpanel and Sidelight Patch with Fin RH

loading

Share to:
sharethis sharing button

VM-41RH American Standard Overpanel and Sidelight Patch with Fin RH

VM-41RH American standard overpanel and sidelight patch with fin RH
Size:
Material of covers:
Thickness of covers:
Finishes of covers:
Material of castings:
Availability:
Quantity:
  • VM-41RH

  • Veyma

  • VM-41RH

Features and specifications:

Application environment:External / internal assemblies
Glass door type:Double action / Single action
Glass type:Monolithic or Laminated toughened glass
Glass thickness:3/8" (10mm) / 1/2" (12mm)
Max. door weight:130kgs
Max. door width:1300mm


Materials and finishes:

Material of covers:SS304 / SS316 / Aluminum alloy / Brass
Thickness of covers:1.0mm / customized thickness
Finishes of covers:SSS / PSS / GOLD / PVD BLACK / ORB BLACK / SILVER / BRONZE
Material of castings:ADC12/A383 / A356-T6
Finishes of castings:Powder coating
Material of insert:SS304 / Carbon steel
Material of pivot:SS304 / Carbon steel
Material of screws:SS304 / Carbon steel
Material of gaskets:Non-asbestos gaskets


Drawings:

VM-41RH drawings

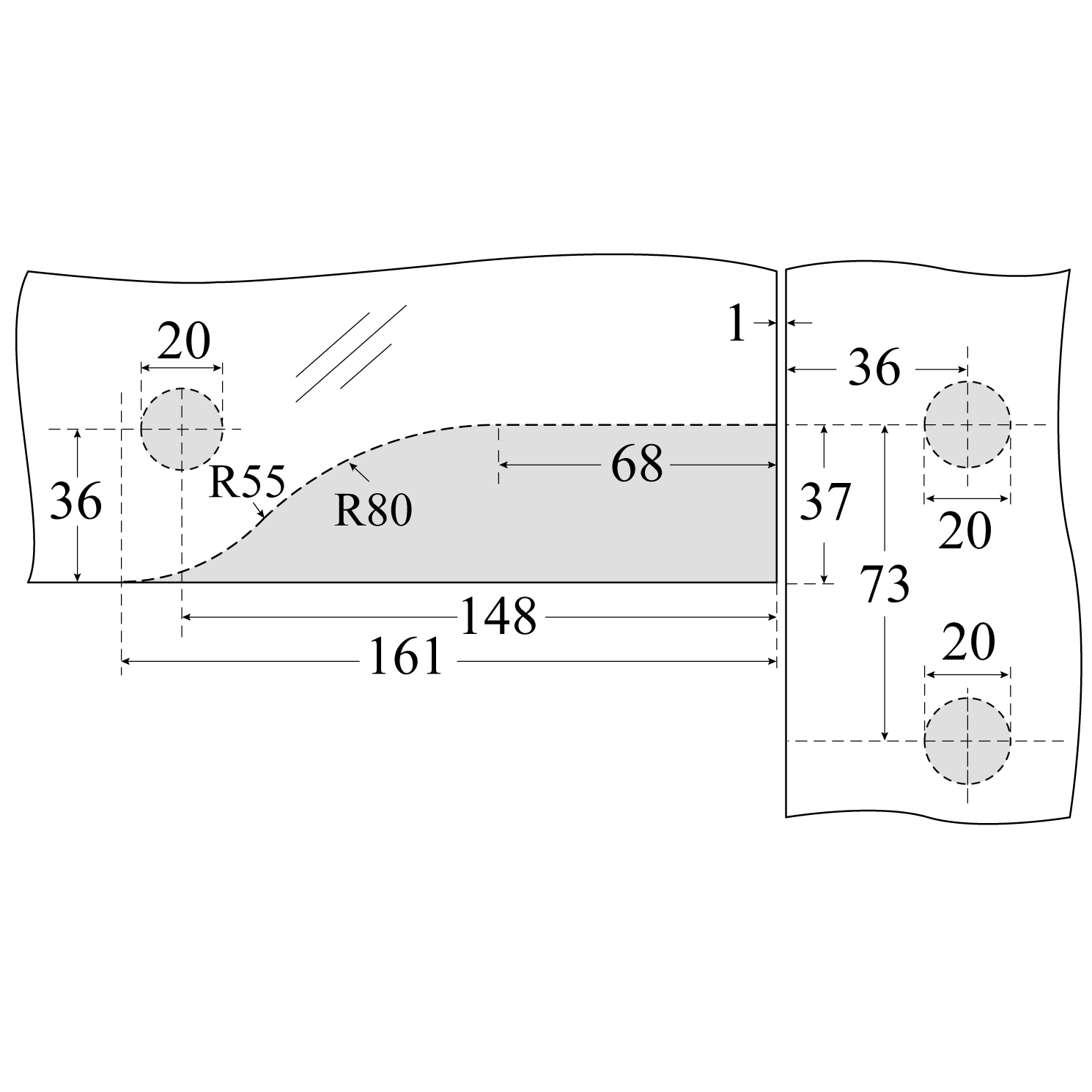

Glass preparations:

VM-41RH glass preparations

VM-41RH glass preparations
