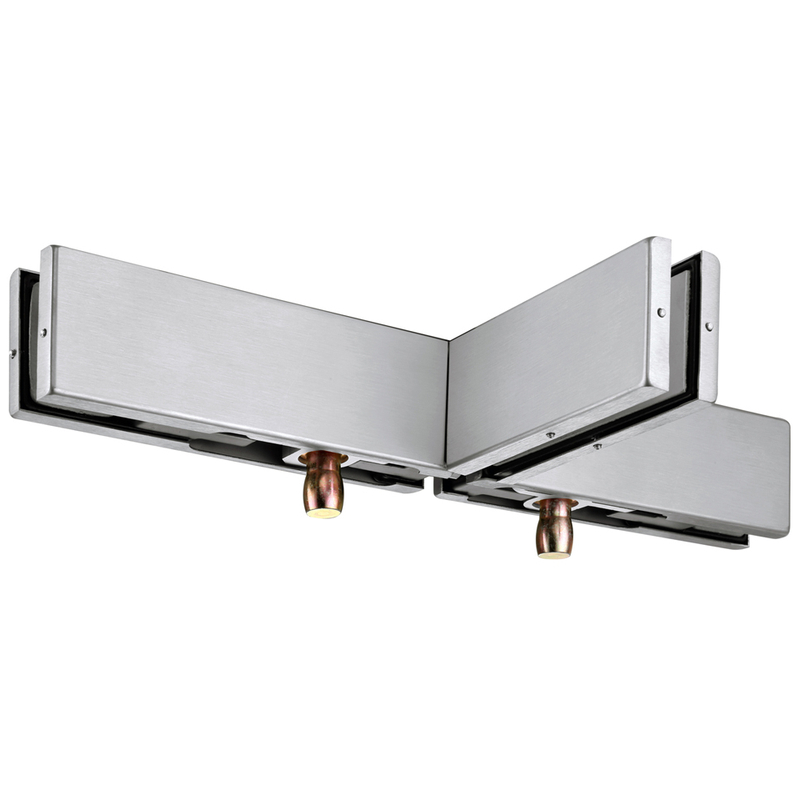

VM-51 European Standard Double Overpanel Patch with Fin

VM-51 European standard double overpanel patch with fin
Size:
330*52*32mm
Material of covers:
SS304
SS316
ALUMINUM ALLOY
BRASS
Thickness of covers:
1.0mm
Finishes of covers:
SSS
PSS
ORB BLACK
SILVER
BRONZE
SN
CP
Material of castings:
ADC12
A356-T6
Availability:
Quantity:
Inquiry Add to Basket

  • VM-51

  • Veyma

  • VM-51

Features and specifications:

Application environment:External / internal assemblies
Glass door type:Double action / Single action
Glass type:Monolithic or Laminated toughened glass
Glass thickness:10 / 12mm
Max. door weight:130kgs
Max. door width:1300mm


Materials and finishes:

Material of covers:SS304 / SS316 / Aluminum alloy / Brass
Thickness of covers:1.0mm / customized thickness
Finishes of covers:SSS / PSS / GOLD / PVD BLACK / ORB BLACK / SILVER / BRONZE
Material of castings:ADC12/A383 / A356-T6
Finishes of castings:Powder coating
Material of insert:SS304 / Carbon steel
Material of pivot:SS304 / Carbon steel
Material of screws:SS304 / Carbon steel
Material of gaskets:Non-asbestos gaskets


Drawings:

VM-51 drawings


Glass preparations:

VM-51 glass preparations

VM-51 fin glass preparations
