VM-61RH Connector Patch with Fin for Overpanel and Sidelight
You are here: Home » Products » GLASS DOORS » PATCH FITTINGS » American Standard Series » VM-61RH Connector Patch with Fin for Overpanel and Sidelight

loading

Share to:
sharethis sharing button

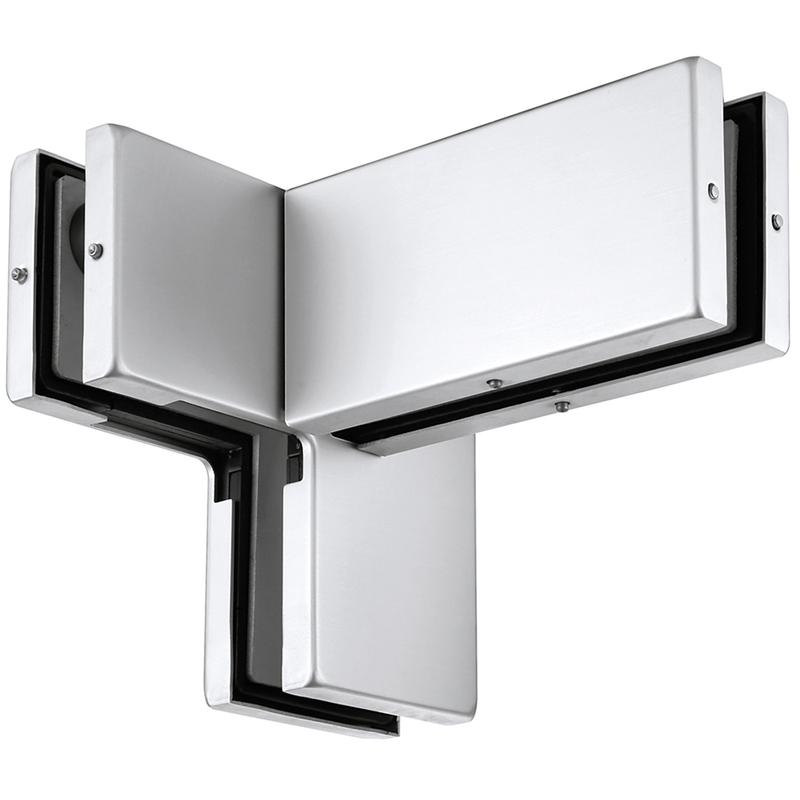

VM-61RH Connector Patch with Fin for Overpanel and Sidelight

VM-61RH Connector Patch with Fin for Overpanel and Sidelight RH
Size:
106*106*32mm
Material of covers:
SS304
SS316
ALUMINUM ALLOY
BRASS
Thickness of covers:
1.0mm
Finishes of covers:
SSS
PSS
ORB BLACK
SILVER
BRONZE
SN
CP
Material of castings:
ADC12
A356-T6
Availability:
Quantity:
Inquiry Add to Basket

  • VM-61RH

  • Veyma

  • VM-61RH

Features and specifications:

Application environment:External / internal assemblies
Glass door type:Double action / single action glass door
Glass type:Monolithic or Laminated toughened glass
Glass thickness:10 / 12mm


Materials and finishes:

Material of covers:SS304 / SS316 / Aluminum alloy / Brass
Thickness of covers:1.0mm / customized thickness
Finishes of covers:SSS / PSS / GOLD / PVD BLACK / ORB BLACK / SILVER / BRONZE
Material of castings:ADC12/A383 / A356-T6
Finishes of castings:Powder coating
Material of stop tab:SS304
Material of screws:SS304 / Carbon steel
Material of gaskets:Non-asbestos gaskets


Drawings:

VM-61RH drawings


Glass preparations:

VM-61RH glass preparations

VM-61RH fin glass preparations
